Supplying Brooks Superglide Stairlifts
throughout County Durham and the North East

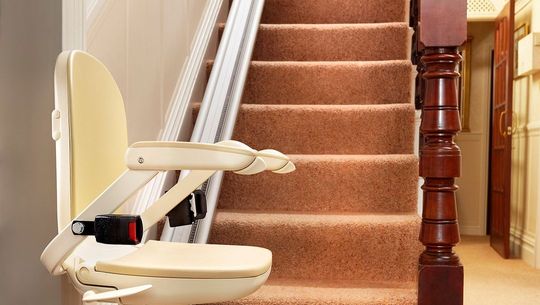

Looking for the latest stairlift model? The Brooks Superglide stairlift represents the latest in stairlift technology. Offering high-quality safety features and whisper-quiet operation, this state-of-the-art stairlift offers all the advantages of modern design. Based in Newton Aycliffe, County Durham, our stairlift suppliers deliver and install this model throughout the North East. Get in touch today to find out more.
Choosing the Right Stairlift
With an ever-growing demand for stairlift equipment, a lot of people wind up with outdated products installed in their homes. The days of chain drives and trailing cables are over and modern stairlifts are the future.
At Stairlift Solutions, we will always provide honest advice about the best stairlift for your needs, cutting through all the information that’s out there on the internet and helping you find a stairlift that’s simple to install and maintain. The Brooks model offers a wealth of modern features to guarantee smooth operation.
Key Features
• Padded Seat and Backrest
• Easy-to-Use Controls
• Secure Safety Belt
• Folding Arms, Footrest, and Seat for Easy Access to Stairway
• Swivel Seat – No Need for Twisting the Body to Get on and off the Lift
• Diagnostic Digital Display
• Modular Rail for Quick Delivery, Assembly, and Installation
• Safety Sensors
• Handheld Remote Controls x 2
• Whisper-Quiet Operation
• Maximum Load of 120kg (294lbs) – a 160kg (350lb) Option Is Also Available
Safety Features
Electronic and Mechanical Braking Systems
These essential safety systems are fitted as standard to eliminate any possibility of an uncontrolled descent of the stairlift.
Limit Sensors
Placed at each end of the rail, limit sensors ensure that the stairlift will come to a “soft stop” in the correct position at the end of each ascent or descent.
Choice of Control
We provide a choice between a simple mechanical paddle fitted on the arm of a seat or a pair of infrared remote control handsets. These wireless remote controls are ideal for lifts with two users who need to send the lift up or down the stairs, with no need for unsightly wall-mounted wiring or control stations. Please note that the paddle overrides the remote controls.
Seatbelts
For extra security and safety, we can fit Brooks Superglide stairlifts with an inertia reel lap harness or a static, 3-point, fixed over-shoulder harness.
Swivel Seat with Locking Catch
The stairlift seat swivels and locks in position, making mounting and dismounting the stairlift easy and safe. The stairlift will not operate unless the seat is in the correct riding position.
Pressure-Sensitive Safety Surfaces
There are 5 surfaces or edges located around the footrest and on the top and bottom of the carriage that will stop the lift safely In the event of a collision with any obstruction on the stairway.
Diagnostic Digital Display
Mounted on the carriage of the stairlift is a digital display which shows clearly when the lift is in the normal operating position, and also provides invaluable diagnostic information in the unlikely event of a fault with your stairlift.
Slimline Design
The fold-away construction makes the stairlift unobtrusive and allows full access to the stairs.
Technical Specification
| mm | Inch | ||
| A | Overall Height (from Floor) | 975 | 38.5 |
| B | Height of Seat | 455 | 18 |
| C | Overall Depth (from Wall) | 546 | 21.5 |
| D | Overall Depth (When Folded) | 280 | 11 |
| E | Width of Footrest | 310 | 12.25 |
| F | Overall Width | 620 | 24.5 |
| G | Depth of Seat | 425 | 16.75 |
Specification
• Motor Power – 0.25kw
• Motor Output Speed – 22RPM
• Method of Drive – Rack and Pinion
• Motor Output Torque – 108 Nm
• Power Supply – 24 v DC (Battery)
• Maximum Capacity – 120kg (160kg available)
• Extruded Aluminium Track
• Mains Supply – 110v, with 50Hz charger
Additionally, the Brooks Stairlift is specified to meet, or exceed the requirements of:
• BS 5776:1996 - British Standard - 'Specification for Powered Stairlifts'
• CE Mark - Brooks Superglide Meets the Requirements of the Applicable European Directive(s)
• UL Compliant (Underwriters Laboratory Inc) for Mechanical and Electrical Hazards
